Vertical Machining Center

Type: CNC 5-Axis Vertical Machining Center Model: DU5-500 Params: Travel & Worktable X/Y/Z axis travel: 520 / 450 / 420 mm B-axis swing range: ± 120 degrees B/C-axis drive mode: Direct drive C-axis rotation range: 360° (0.001) Distance from the spindle to the worktable: 150-570 mm Worktable size / max. working space: Ø500 / 540*R480 mm T-slot (width * number): 6-12H8 Maximum load weight: 200 kg B/C-axis Performance B/C-axis Maximum speed: 60 / 100 rpm B/C-axis Rated torque: 335 / 106 Nm B/C-axis Maximum torque: 1680 / 840 mm (Note: Listed as mm in the original data) Spindle System Option 1: Direct Spindle Maximum spindle speed / spindle taper: 15000 rpm / HSK-A63 Power (S1/S6 40%): 16.8 / 23.5 kW (Alternative: 18 / 25.2 kW) Output torque (S1/S6 40%): 53 / 100 Nm (Alternative: 82 / 118 Nm) Option 2: Electrical Spindle Maximum spindle speed / spindle taper: 15000 rpm / HSK-A63 (Alternative: 20000 rpm / HSK-A63) Power: 36 / 50 kW (S1/MAX) (Alternative: 31 / 37.2 kW (S1/S6 60%)) Output torque: 159 / 220 Nm (S1/MAX) (Alternative: 100 / 120 Nm (S1/S6 60%)) Feed System X/Y/Z-axis rapid movement speed: 42 m/min X/Y/Z-axis cutting feed rate: 0.001~20 m/min X/Y/Z-axis feed motor power: 3.1 / 4.29 / 4.29 kW Tool Magazine Number of tools: 32 pcs Maximum tool length: 300 mm Maximum tool diameter: Ø75 / Ø150 mm Maximum tool weight: 8 kg Fluids & Utilities Cutting coolant motor power: 1.0+1.0 kW Air pressure requirement: 5-8 kg/cm² Coolant pump pressure: 4 bar Water tank capacity: 180 L Required power capacity: 50 kVA Accuracy X/Y/Z-axis positioning accuracy (Full travel of VDI 3441): 0.008 mm B/C-axis positioning accuracy (Full travel of VDI 3441): 10 arc sec X/Y/Z-axis repeat accuracy (Full travel of VDI 3441): 0.005 mm B/C-axis repeat accuracy (Full travel of VDI 3441): 4 arc sec Dimensions, Weight & System CNC system: SIEMENS (Alternative: SIEMENS ONE) Total height: 2900 mm Length x Width (excluding chip removal machine): 2840 x 3000 mm Net weight (without accessories): 6000 kg Material: Cast iron/special steel/marble/precision electronic components. Applicable Industry: Manufacturing

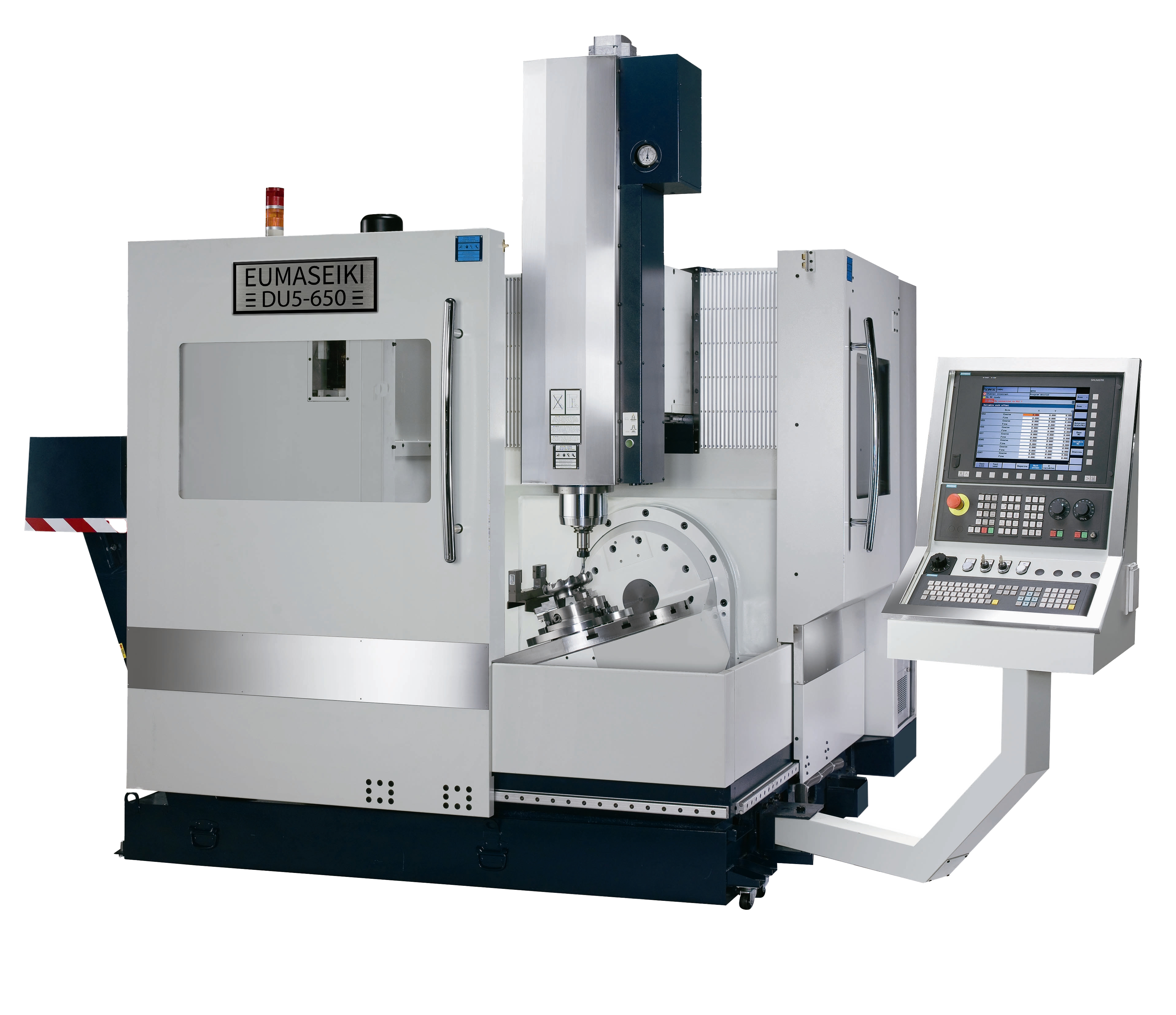

DU5-650
